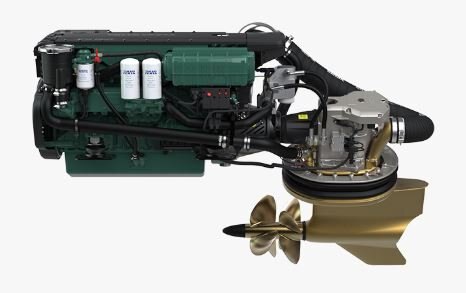

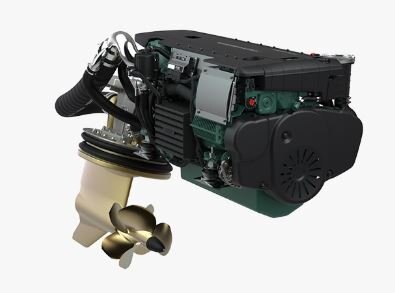

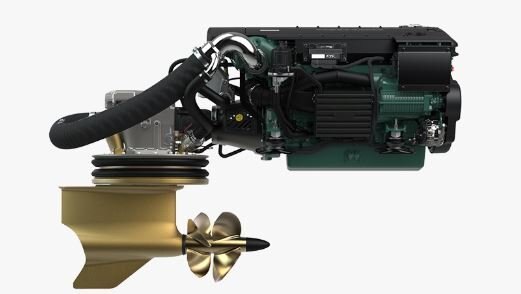

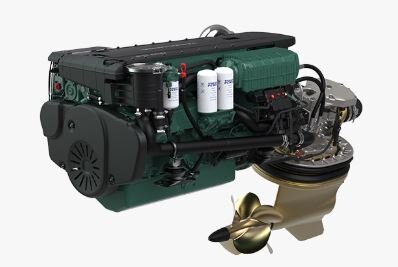

Volvo Penta D6 IPS D6-IPS400

Overview
  • Totally integrated system, from helm to propeller
  • Unique, steerable pods- Integrated seawater and exhaust system
  • Twin rubber suspension and sealing rings plus soft-suspended engine
  • Electronically controlled common-rail injection system
  • Electronic shift and throttle- Electronic steering, enabling features such as joystick maneuvering and Dynamic Positioning System
Volvo Penta D6-IPS is a perfectly matched package, powered by the in-line 6-cylinder D6, a 5.5-liter, common-rail diesel with a turbo, working together with a perfectly matched pod. The D6-IPS is available in 400, 450, 500, 600, & 650 power variations. This high-efficient propulsion system offers excellent maneuverability, onboard comfort, fuel efficiency, and low emissions.
Specifications
Model
D6 IPS
Category Name
Engines
Year
2024
Sale Type
New
Manufacturer
Volvo Penta
Crankshaft Power
D6-IPS400
Displacement Litres
5.5 litres
features & benefits

Maneuverability

Steerable pods provide superior slow-speed maneuverability and excellent high-speed handling. The joystick makes docking easy and safe, even in confined spaces. Outstanding maneuverability also leads to efficient driver response and high safety.

High performance

This perfectly matched package provides outstanding performance and excellent maneuverability. By working in undisturbed water, the forward-facing propellers enhance the already high performance.

Comfort

This package is designed for low noise and high onboard comfort. A combined rubber suspension and seal absorb propulsion forces and vibrations. All exhaust fumes are emitted through the pods and into the prop wash for improved comfort.

Electronic Vessel Control

Volvo Penta Electronic Vessel Control fully integrates the propulsion system enabling the unique set of optional features, such as Joystick Docking, Dynamic Positioning System, and Glass Cockpit.

Compact and robust package

The engine is designed and built to be immensely strong, using cutting edge technolgy and material. Together, the engine and pod form a compact, robust and highly efficient package that is easy to install. This gives excellent reliability and long-term durability.

Long service intervals

A propulsion system from Volvo Penta is easy to maintain. Our comprehensive range of high-quality oil, lubrication, and coolant ensures top performance and more time at sea. Standard features include replaceable separate full-flow and bypass oil filter, oil level and oil temperature sensors and crank case oil separator to keep the engine in good condition. Maintenance assistant in the standard display indicating time to service.

performance
Crankshaft power 221kW/300hp
Rating 4
Fuel Type Diesel
Displacement litres 5.5 litres
Displacement cui 336 in³
Number of Cylinders 6
Control System Electronic Vessel Control
High-pressure fuel injection Common-rail fuel injection
Aspiration Turbo with charge air cooler
details
Cooling System Heat Exchanger Cooling, Keel Cooling
Product Series 6 liter series
literature
Name Link
Download as CSV Download
Product leaflet - D6 IPS 400 450 500 600 650 (PDF, 1.1MB) Download
