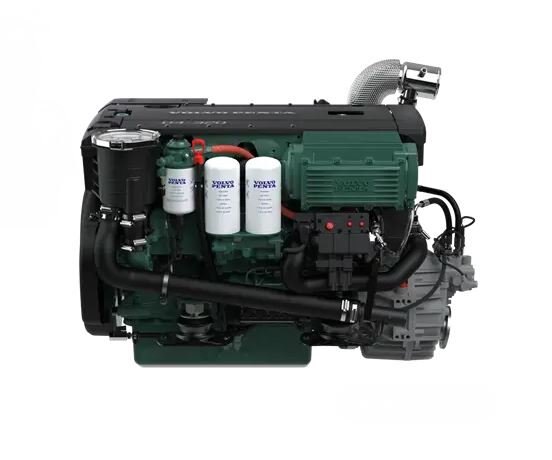

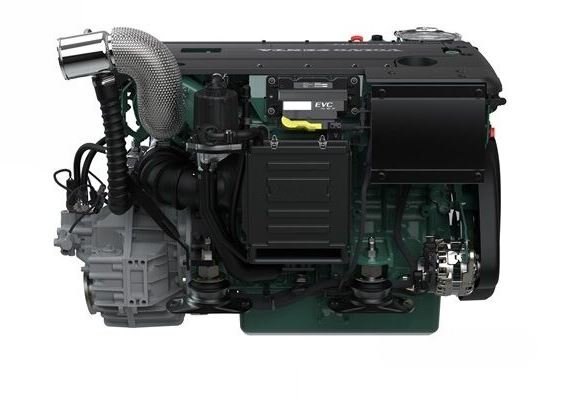

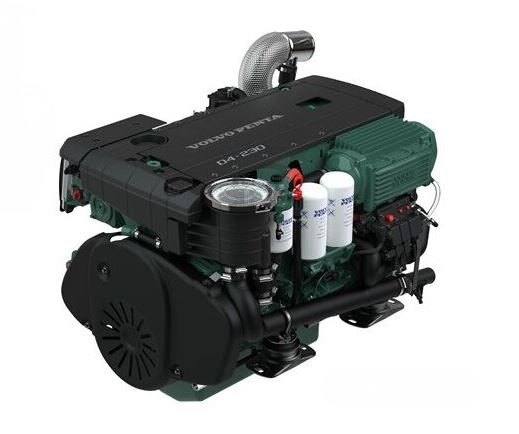

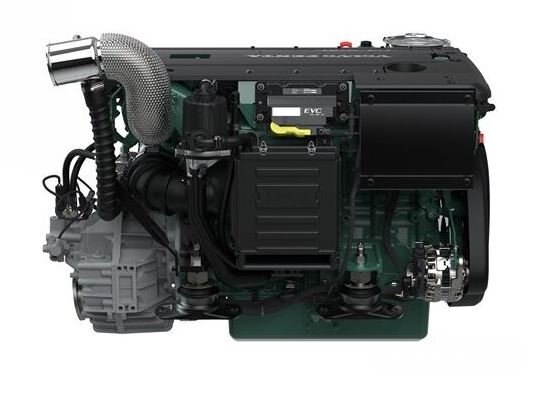

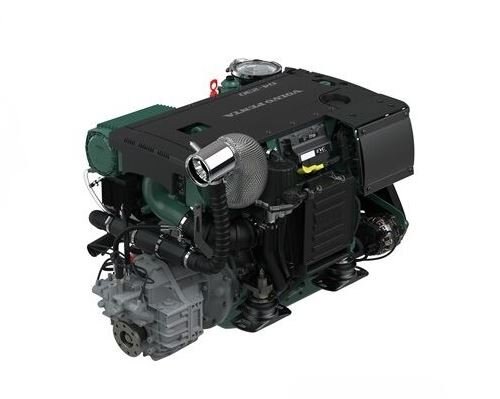

Volvo Penta D4 Inboard Engine 320 hp

Overview
  • Solid and robust engine design
  • Electronically controlled common-rail injection system
  • Electronic Vessel Control
  • Electronic shift and throttle
  • Gear box with hydraulic clutch
You can trust our Volvo Penta D4 to provide high reliability, exceptional fuel efficiency and low maintenance cost. This in-line 4-cylinder, 3.7-liter diesel engine features common-rail fuel injection, double overhead camshafts and turbo.
Specifications
Model
D4 Inboard Engine
Category Name
Engines
Year
2024
Sale Type
New
Manufacturer
Volvo Penta
Crankshaft Power
320 hp
Displacement Litres
3.7 litres
features & benefits

High performance

Immediate response and high performance is matched by low levels of noise and vibrations, further reduced by the balance shaft and the optimized engine suspension.

Compact and robust

The engine is designed and built to be immensely strong, using cutting edge technology and material. This gives high reliability and long-term durability.

Unique marine torque

Volvo Penta engines excel with their unique marine torque. High torque at low rpm gives rapid acceleration to the plane and massive maneuvering power. Even at high load and high rpm, the torque remains strong to provide efficient cruising speed in all conditions.

Low fuel consumption

The common-rail fuel injection system helps make the engine highly fuel efficient. The control unit monitors several parameters which reduces the overall fuel consumption.

Electronic Vessel Control

Volvo Penta Electronic Vessel Control fully integrates the propulsion system enabling the unique set of optional features, such as Joystick Docking, and Glass Cockpit.

Long service intervals

A propulsion system from Volvo Penta is easy to maintain. Our comprehensive range of high-quality oil, lubrication, and coolant ensures top performance and more time at sea. Standard features include replaceable separate full-flow and bypass oil filter, oil level and oil temperature sensors and crank case oil separator to keep the engine in good condition.

performance
Crankshaft power 235kW/320hp
Rating 5
Fuel Type Diesel
Displacement litres 3.7 litres
Displacement cui 224 in³
Number of Cylinders 4
Control System Electronic Vessel Control
High-pressure fuel injection Common-rail fuel injection
Aspiration Turbo with charge air cooler
details
Cooling System Heat Exchanger Cooling, Keel Cooling
Product Series 4 liter series
literature
Name Link
Download as CSV Download
Product leaflet (PDF, 567.1KB) Download
