Mercury Racing 500R Cold-Fusion White

  • Mercury Racing 500R Cold Fusion White
  • Mercury Racing 500R Cold Fusion White
  • Mercury Racing 500R Cold Fusion White
  • Mercury Racing 500R Cold Fusion White
  • Mercury Racing 500R Cold Fusion White
  • Mercury Racing 500R Cold Fusion White
  • Mercury Racing 500R Cold Fusion White
  • Mercury Racing 500R Cold Fusion White
  • Mercury Racing 500R Cold Fusion White
CUSTOM ORDER
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

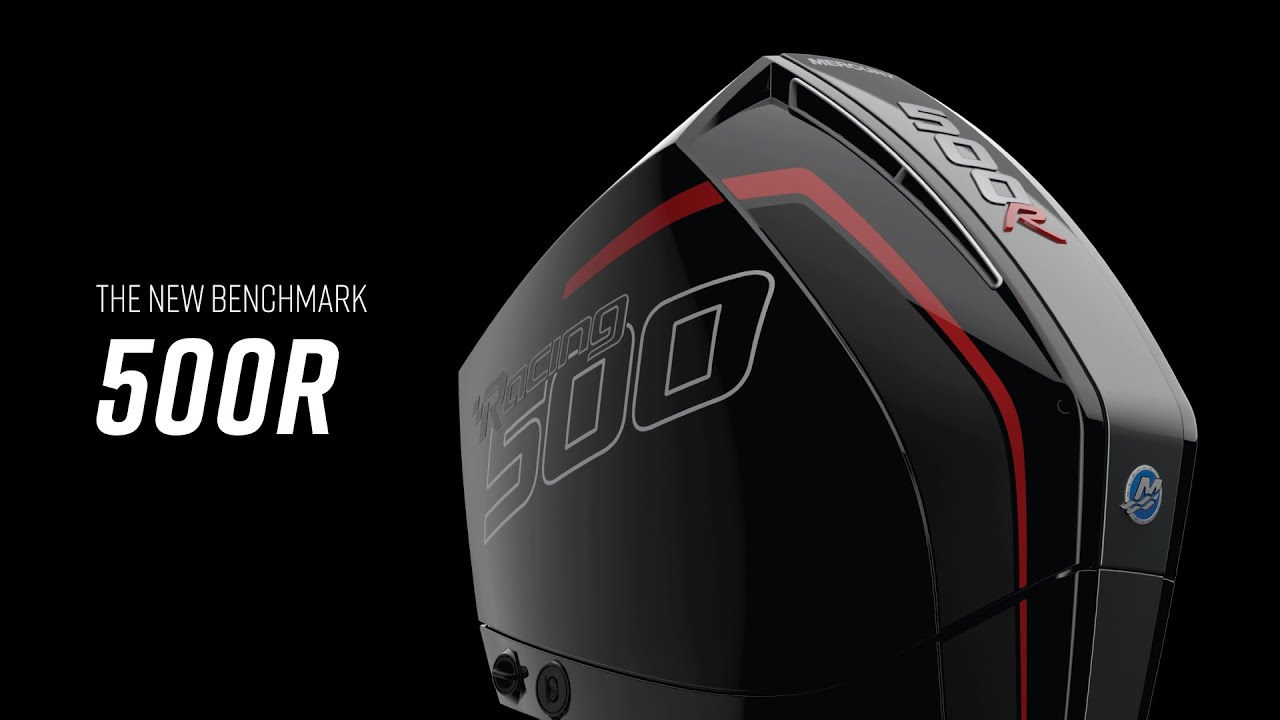

THE NEW BENCHMARK

Experience elevated power and technology created exclusively for owners of the fastest luxury sport boats. Producing 500 supercharged horsepower, the Mercury Racing V8 500R introduces a host of new components in the powerhead, cooling system, midsection, gearcase and steering system, each engineered to harness the raw power produced by this engine and to meet the challenging demands of Wide Open performance boating.
Specifications
Model
500R
Category Name
Outboard Engines
Year
2024
Sale Type
New
Manufacturer
Mercury Racing
Color
Cold-Fusion White
WOT RPM
6000-6600
GEARCASE
R-Drive, R-Drive Sport
RATED HP
500
STEERING
Hydraulic or JPO Electric
WARRANTY
3-Year Limited
CYLINDERS
V8
MIDSECTION
Advanced Racing Core (ARC)
ENGINE TYPE
V8 (64 Degree) with 32-Valve Dual Overhead Cam (DOHC)
DISPLACEMENT
4.6L
GEARCASE RATIO
1.60:1
OIL REQUIREMENT
MRX 10W-30 or Mercury 10W-30 Full Synthetic
INDUCTION SYSTEM
Supercharged with Charge Air Cooling and Electronic Boost Control
THROTTLE & SHIFT
Digital Throttle & Shift (DTS)
FUEL REQUIREMENTS
Unleaded Regular 89 Octane Minimum (R+M/2) or 95 RON
FULL THROTTLE RPM
6000-6600
DRY WEIGHT (LB/KG)
726lbs
HORSEPOWER (HP/KW)
500 / 372
CHARGING (AMP/WATT)
115 / 1449
SHAFT LENGTHS (INCH)
20, 25, 30, & 35
INTEGRATED REAR TIE BAR BRACKET
Available
powerhead

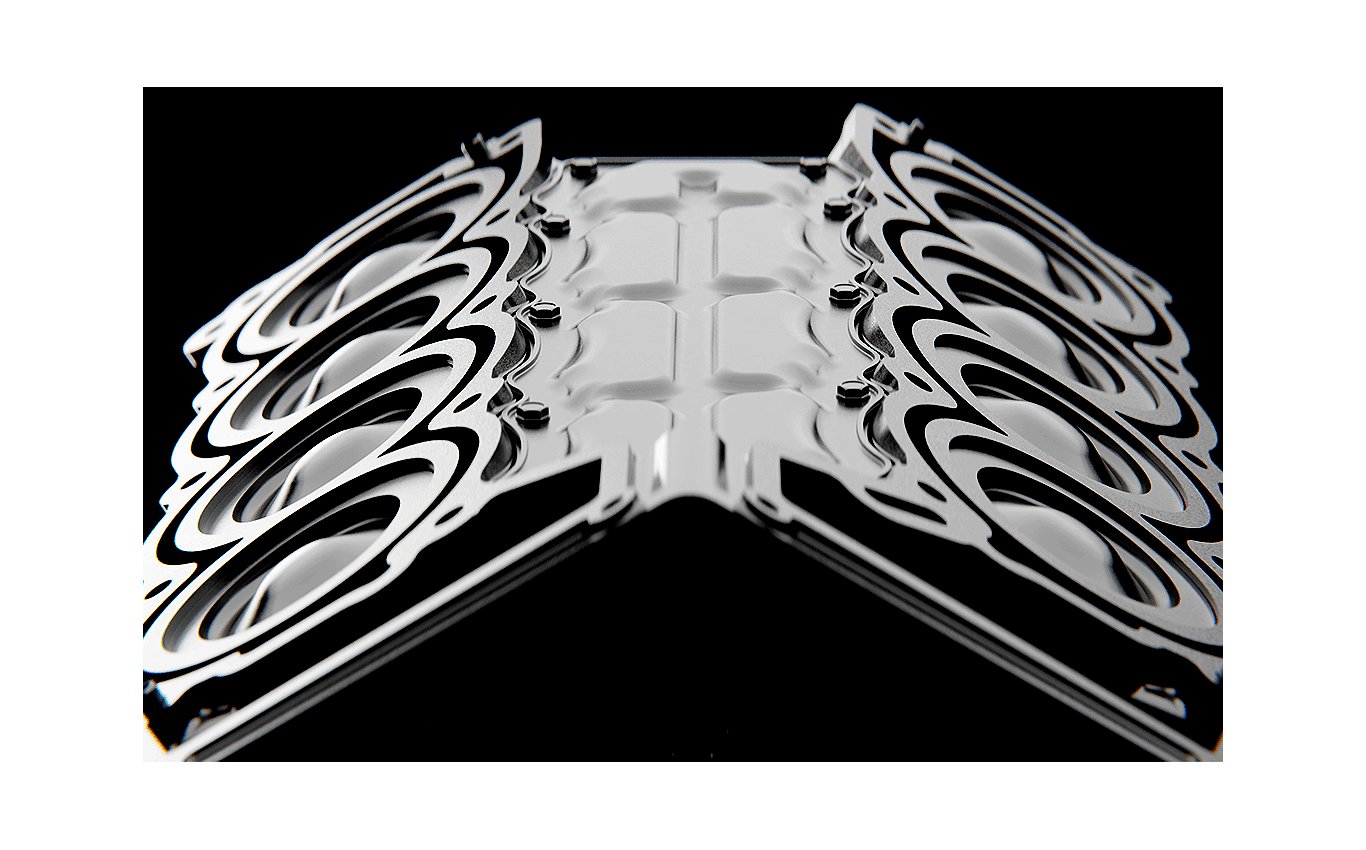

Mercury Racing 500R Cold Fusion White STOUT POWERHEAD

Built from the inside out for rugged performance. Our new 4.6L V8 powerhead features upgraded components support to a scaled-up power output and deliver reliability you can count on.

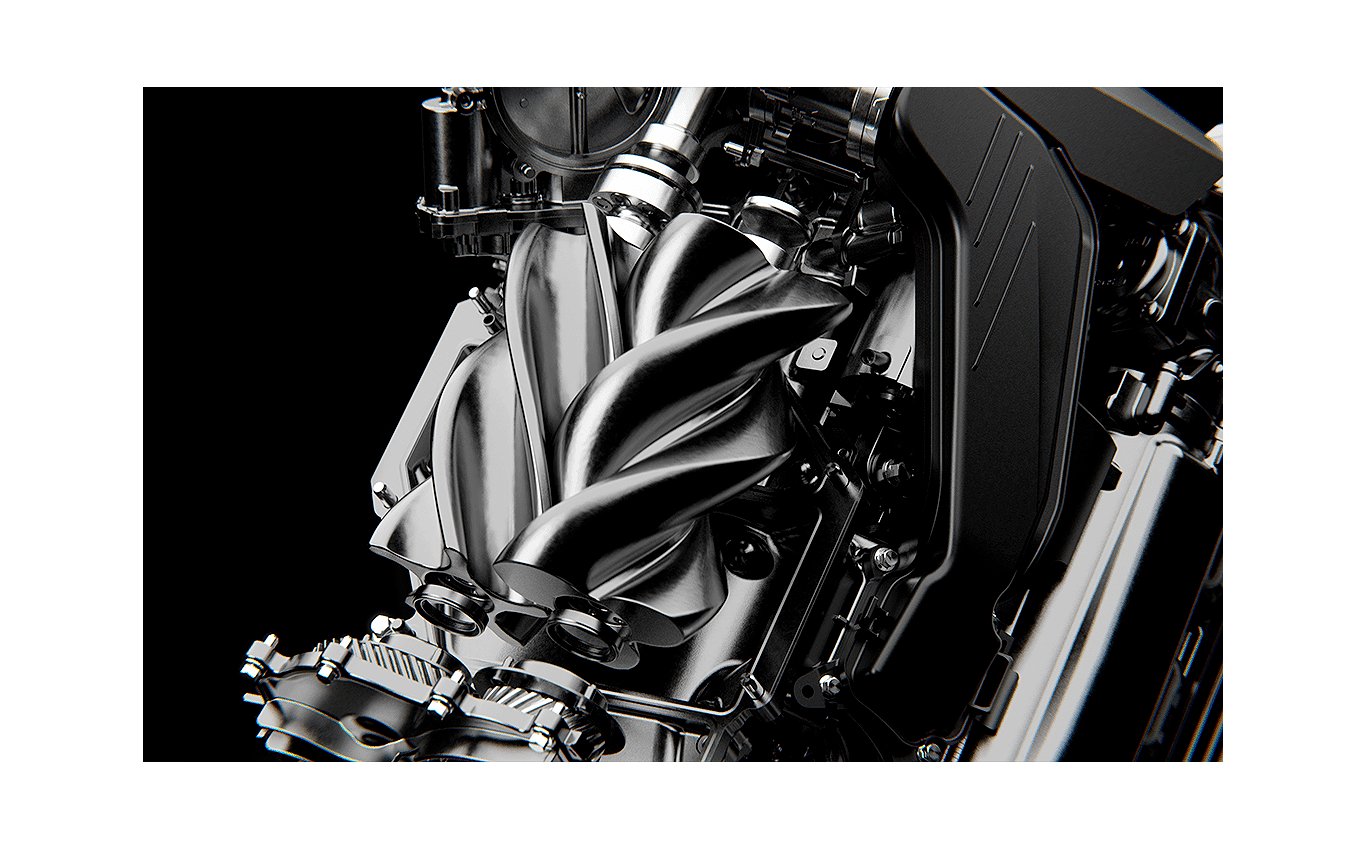

Mercury Racing 500R Cold Fusion White BIGGER BOOST

Our power prescription calls for a 26% increase in supercharger boost pressure. Air flow is optimized with a larger intake attenuator and a new 92mm throttle body.

Mercury Racing 500R Cold Fusion White HUMIDITY COMPENSATION TECHNOLOGY

More power in every environment. For the first time in any marine engine, a new sensor measures the humidity level of the intake airflow to maintain the most aggressive calibration and optimize performance under virtually all conditions.
gearcase

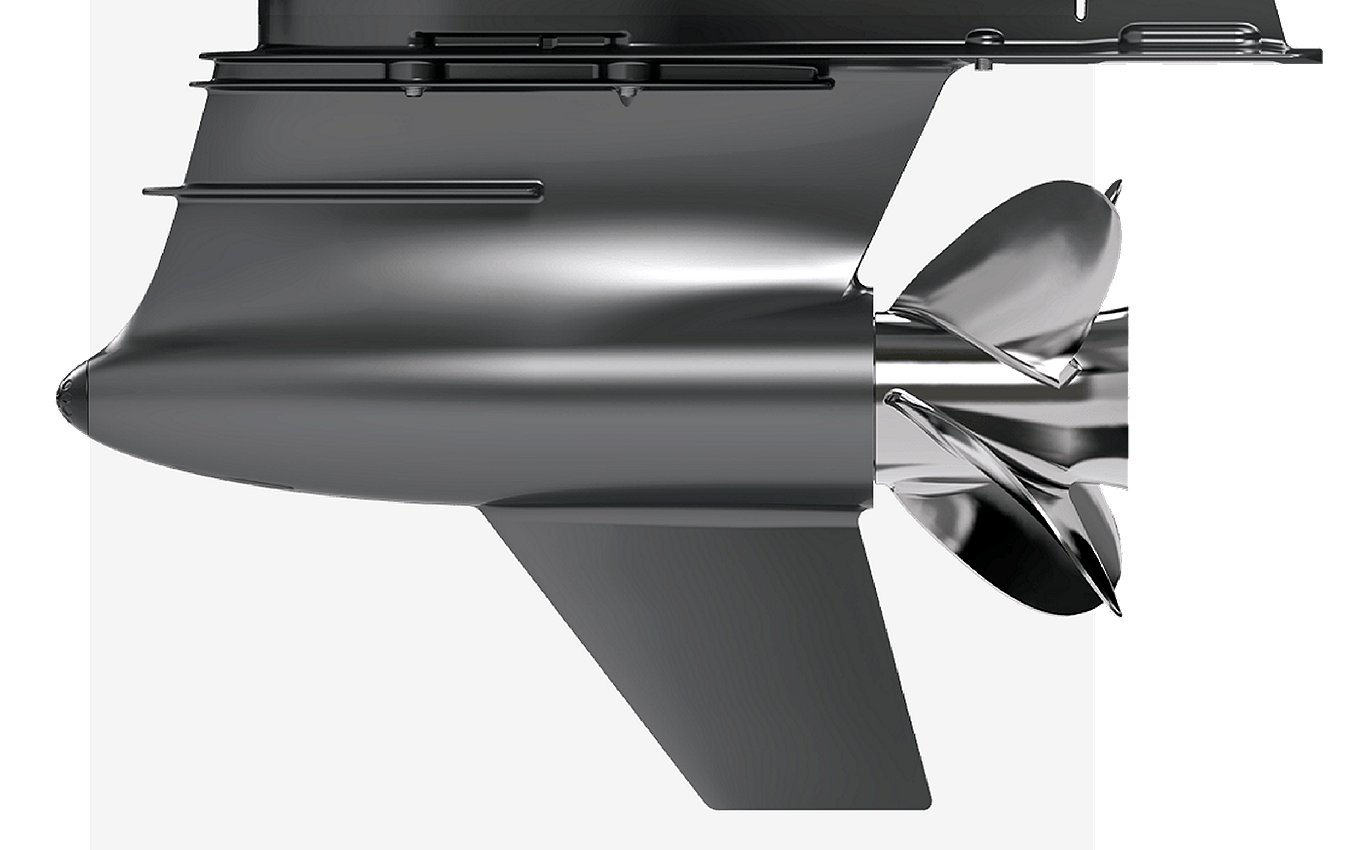

Mercury Racing 500R Cold Fusion White R-DRIVE

The R-Drive gearcase features a standard skeg length with a very efficient parabolic cross-section shape with left- or right-hand camber to balance steering force with standard and counter rotation props. Designed to perform in submerged and transition applications on boats capable of speeds between 85 and 100mph.

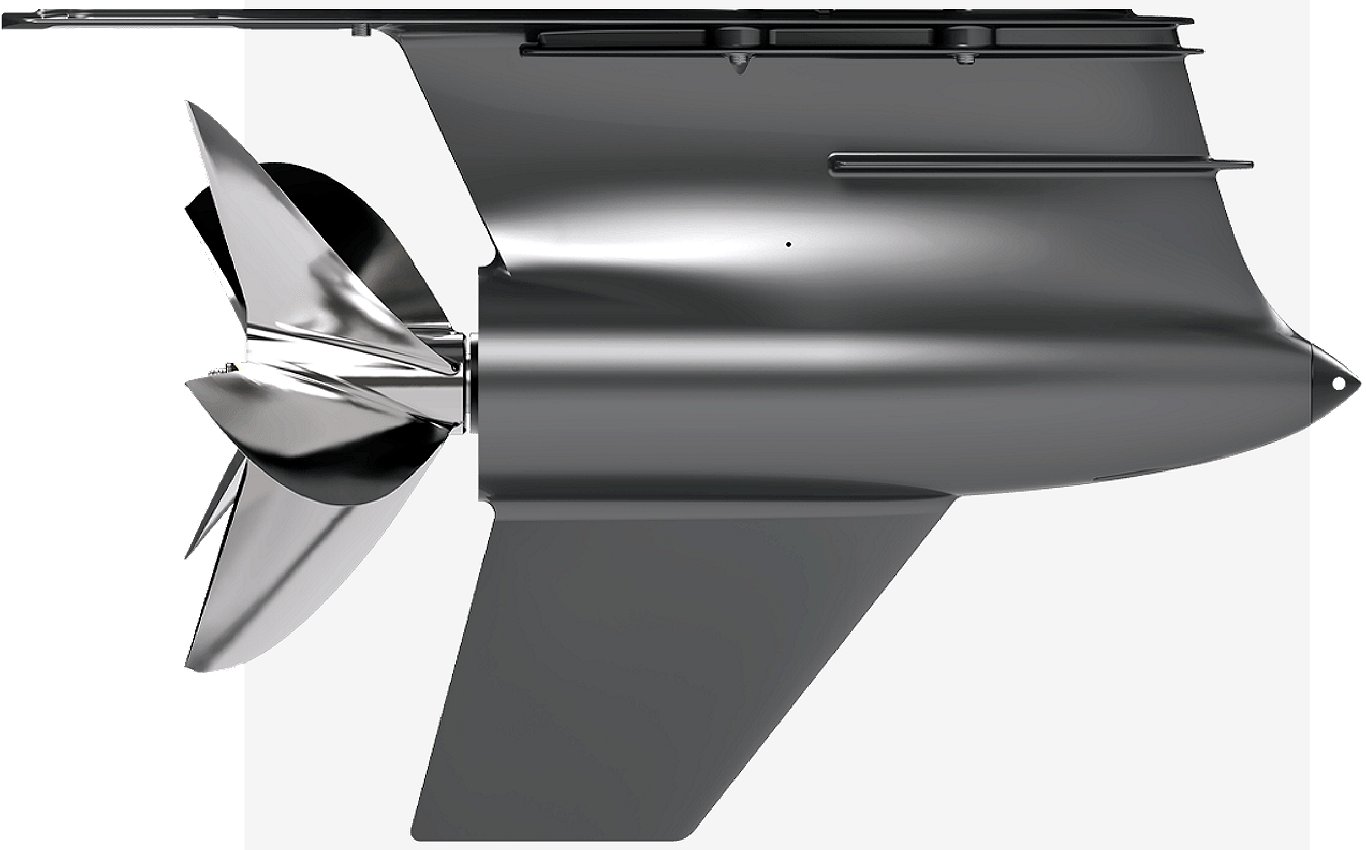

Mercury Racing 500R Cold Fusion White R-DRIVE SPORT

The R-Drive Sport is optimized for surfacing applications at speeds beyond 100 mph. Its longer skeg maintains steering control while operating fully surfaced at the high mounting positions desirable for many of the fastest hulls.
tech

Mercury Racing 500R Cold Fusion White DIGITAL THROTTLE & SHIFT (DTS)

The precision of Digital Throttle and Shift (DTS) with available Mercury Racing Digital Zero Effort controls eliminates cable maintenance and delivers smooth shifting with instant throttle response.

Mercury Racing 500R Cold Fusion White ADAPTIVE SPEED CONTROL

Adaptive Speed Control maintains engine RPM as load changes due to sea conditions or turning maneuvers to maintain boat authority with less control input.

Mercury Racing 500R Cold Fusion White SMARTCRAFT TECHNOLOGIES

The 500R model supports the full suite of Mercury SmartCraft technologies, including the Engine Guardian monitor system. Stream engine and performance data to a Mercury VesselView multi-function display or to many other multi-function displays.

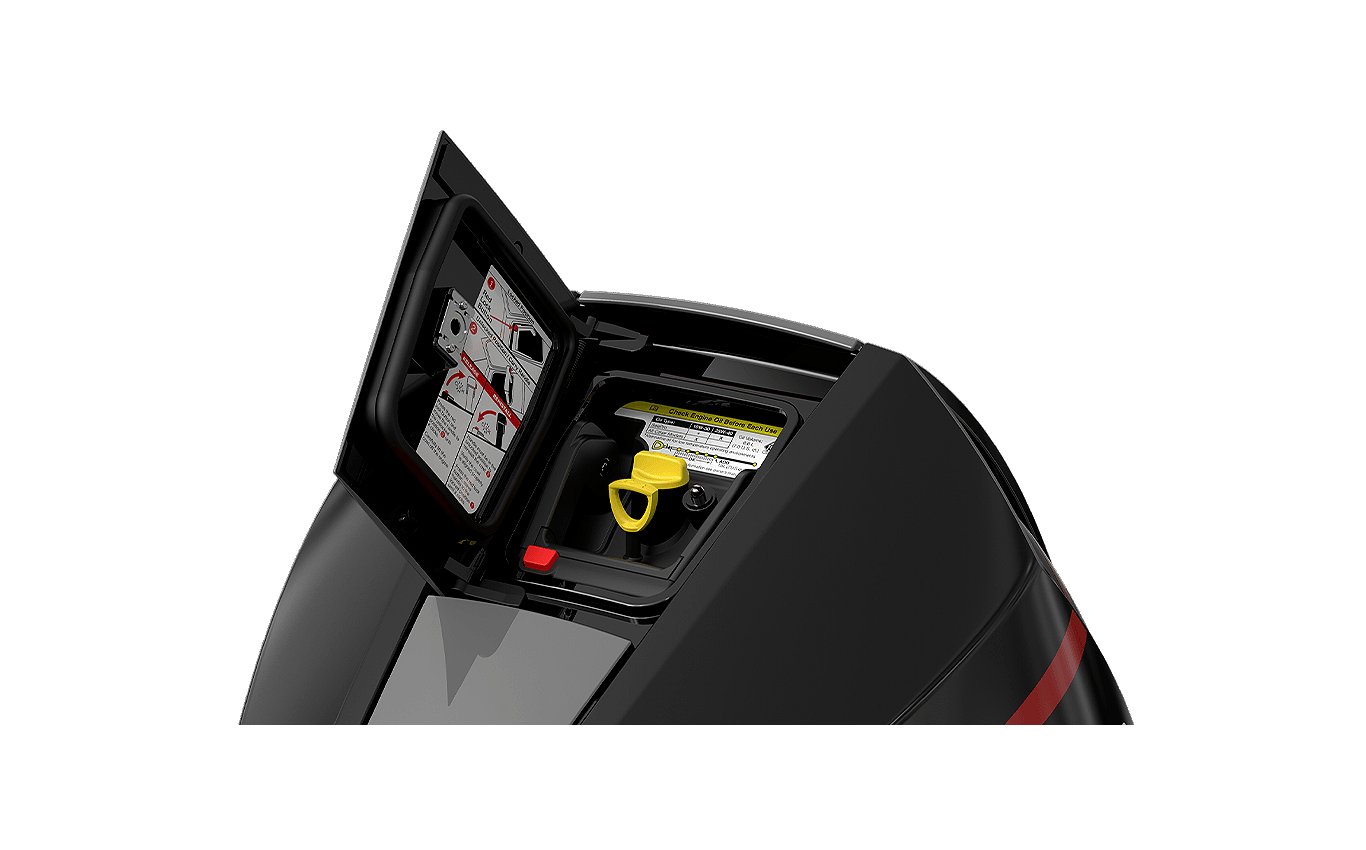

Mercury Racing 500R Cold Fusion White TOP COWL SERVICE DOOR

Pop open the industry-exclusive Top Cowl Service Door for easy access to the oil dipstick and fill without removing the cowl.
