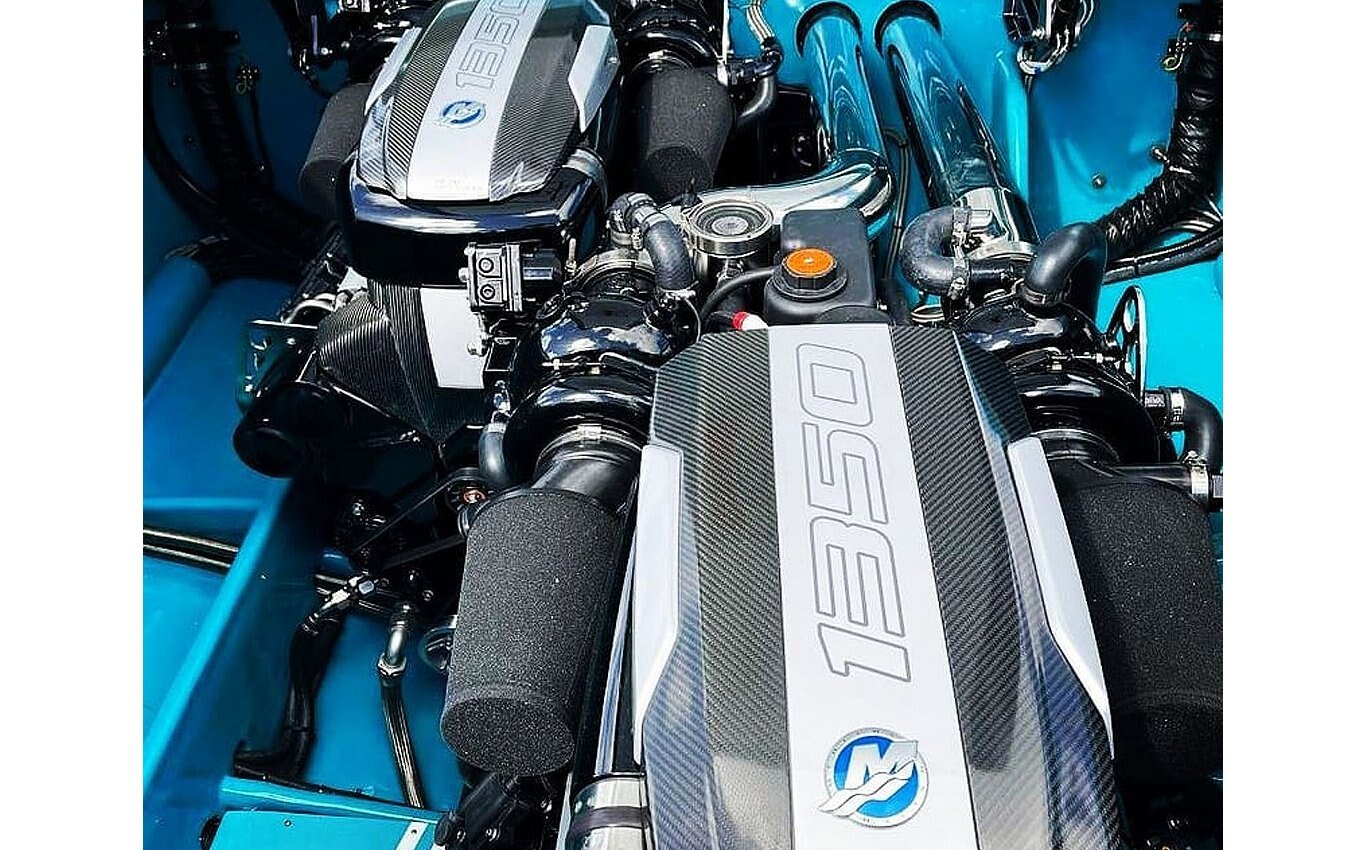

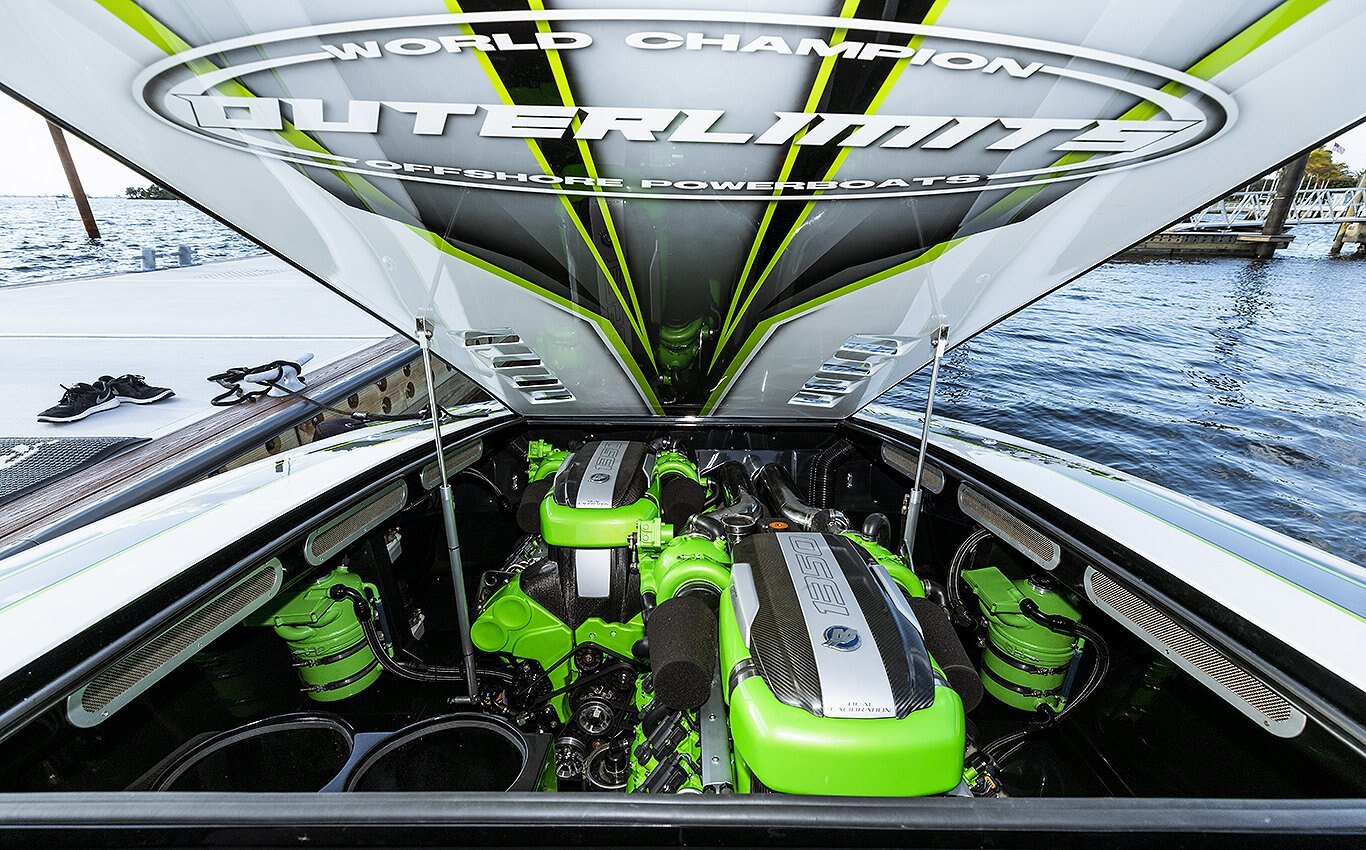

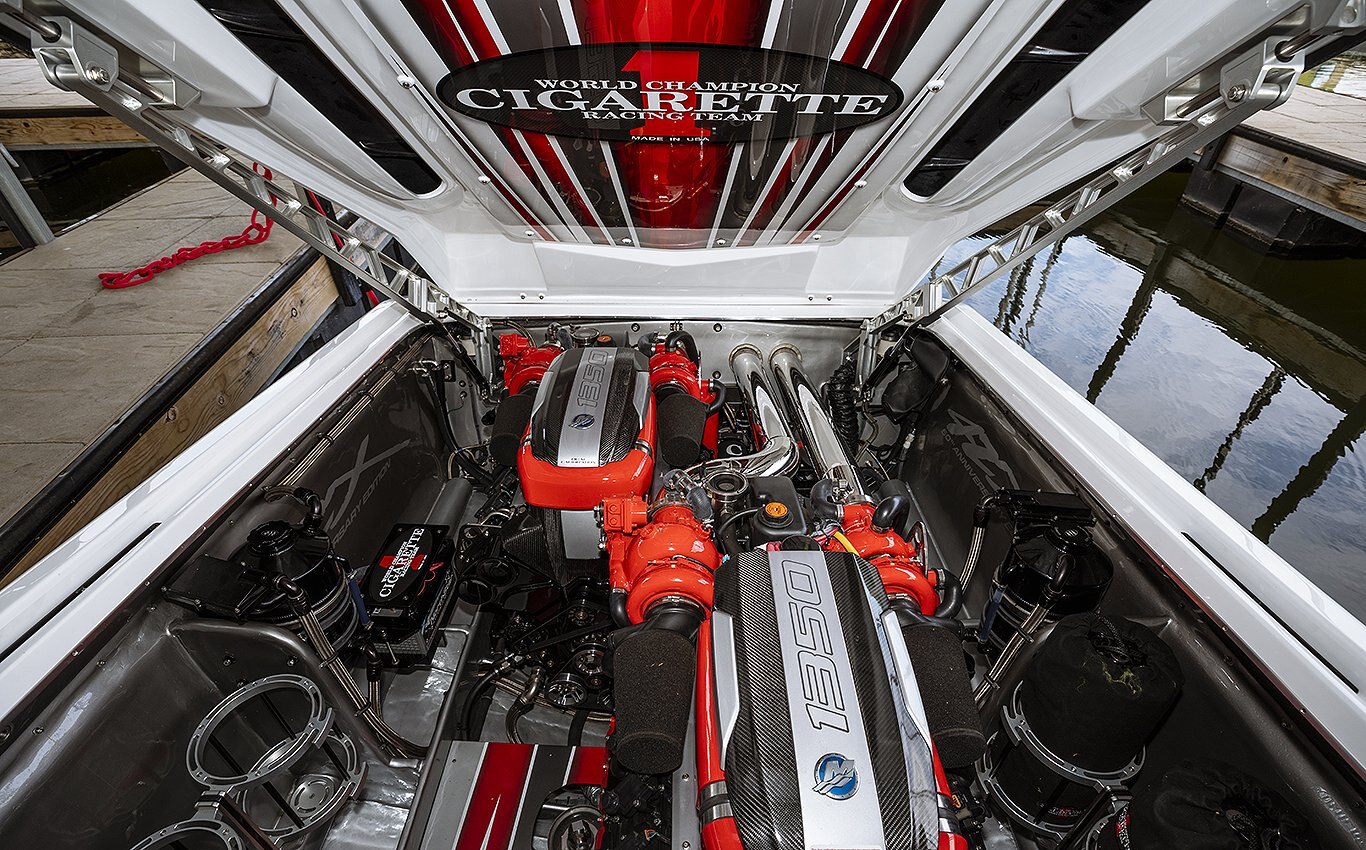

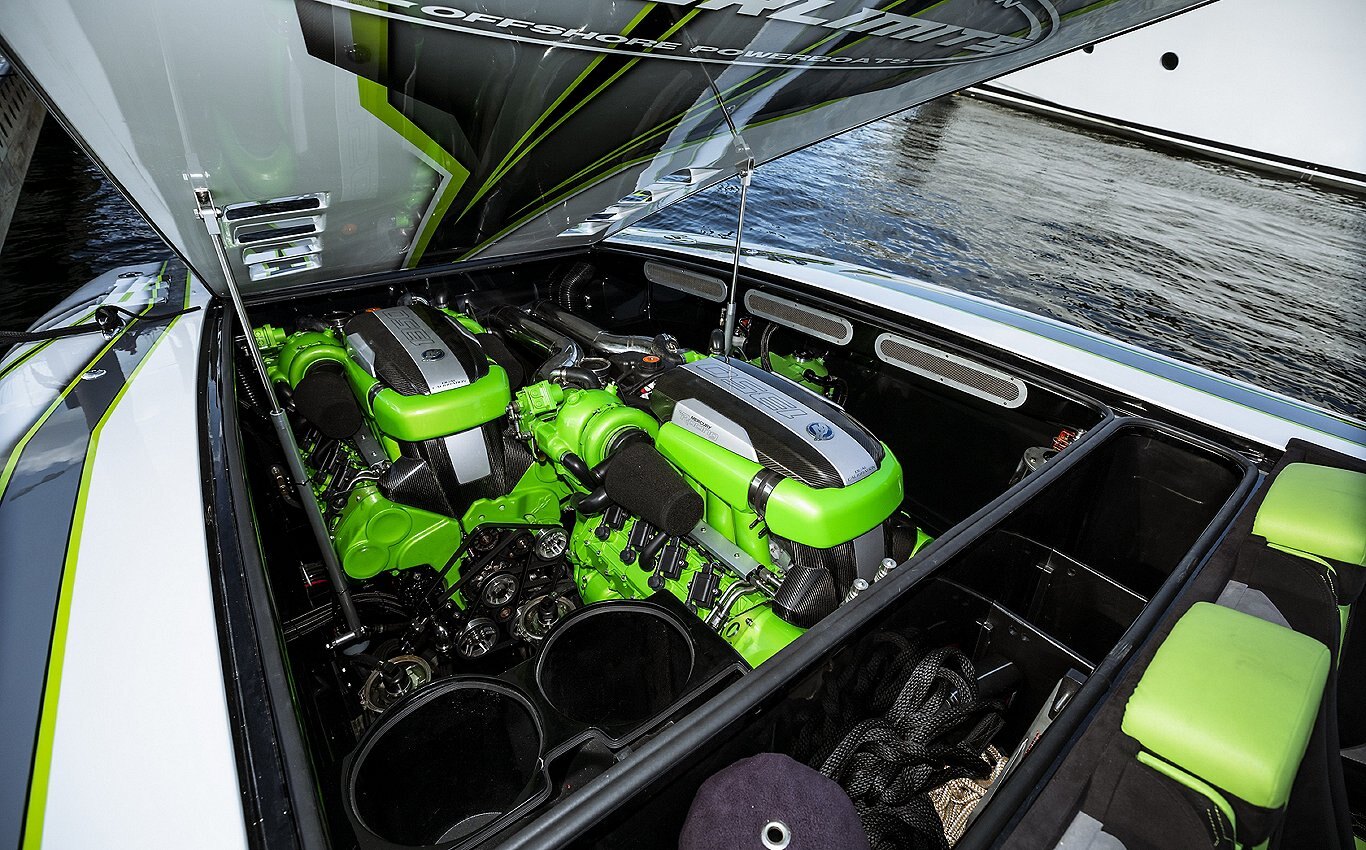

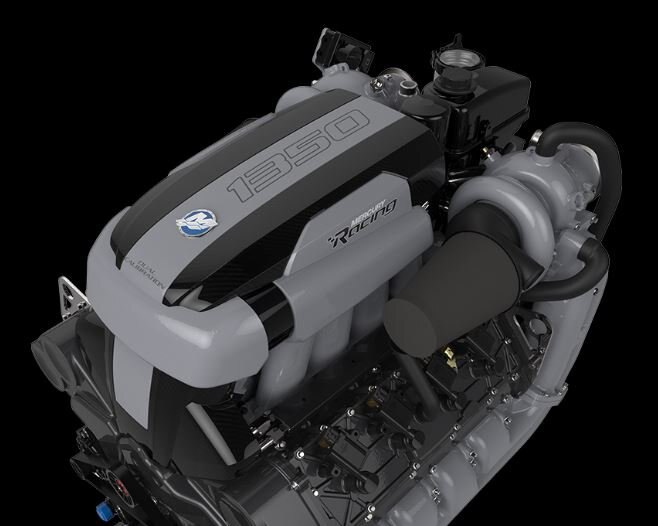

Mercury Racing DUAL CAL 1350/1100

Overview

INCREDIBLE TORQUE

The Dual Cal 1350/1100 sterndrive features the Mercury Racing-exclusive dual fuel calibration technology, with its power output controlled via interchangeable electronic key fobs at the dash. The engine pumps out its advertised one thousand three hundred and fifty horsepower on 91 octane fuel when the 1350 horsepower fob is engaged. Engaging the 1100 horsepower fob reduces the octane requirement to 89 or rec 90 to allow operation in areas where premium fuel availability is unknown. Consumers are responsible for making sure they have the correct fuel grade in their tank when running in 1350 mode. Both fuel calibrations provide maximum torque and efficiency and are designed to optimize engine performance at each power level.

Specifications
Model
DUAL CAL 1350/1100
Category Name
Engines
Year
2024
Sale Type
New
Manufacturer
Mercury Racing
WIDTH
35 IN
HEIGHT
29 IN
Weight
1720 LBS
WARRANTY
1-Year Limited Warranty For Recreation Boating
ALTERNATOR
95 AMP
CONTROLLER
PCM09
DRIVE UNIT
M8
GEAR RATIO
Application Dependent
FUEL SYSTEM
Sequential Fuel Injection
DISPLACEMENT
9.0 L
TRANSMISSION
Mercury Racing Dry-Sump Hydraulic
BORE & STROKE
9.0L/552 CID
FUEL REQUIREMENT
91 Octane For 1350 H.P. Calibration / 89 Octane 1100 H.P. Calibration
COMPRESSION RATIO
7.8:1
FULL THROTTLE RPM
6000-6500
RATED HP AT TRANSOM
1350/1100
LENGTH - FROM BACK OF BLOCK
31 IN
CYLINDERS / ENGINE CONFIGURATION
V8
gearcase

Mercury Racing DUAL CAL 1350/1100

M8 DRIVE

A short, surface-piercing gearcase allows the engines to be mounted two inches deeper in the boat, which lowers the center of gravity, improving boat handling and overall performance. It also provides more flexibility in boat hatch styling. The M8 features twin-pinion drive and robust internal components rated to handle up to 1600 lb. ft of torque and 1600hp. Its dry sump design reduces parasitic power losses. A standard active anode provides enhanced corrosion resistance.

accessories

Mercury Racing DUAL CAL 1350/1100 DIGITAL ZERO EFFORT CONTROLS

Digital Zero Effort Controls replace the lag and hesitation of traditional throttle and shift cables with digital precision, resulting in smooth shifting and instant throttle response. Ergonomic design features short-throw levers for effortless shifting and ultra-fast throttle response, and the robust stainless-steel levers offer unmatched durability in the offshore environment. Digital Zero Effort Controls can provide automatic throttle synchronization and shadow mode for up to six engines (where two levers operate six engines).

Mercury Racing DUAL CAL 1350/1100

STERNDRIVE CNC PROPELLERS

Pitch, diameter, and rake are perfectly true on every Mercury Racing CNC propeller to ensure that lift, handling, and speed characteristics are absolutely consistent. Thousands of pitch, rake and diameter combinations are available to dial in the maximum performance of almost any high-performance boat. Each CNC Cleaver propeller is custom made to order.

literature
Name Link

MR-Sterndrive-Brochure.pdf

Download
