Mercury Racing DUAL CAL 1550/1350

Overview

TURBO CHARGED EXCITEMENT

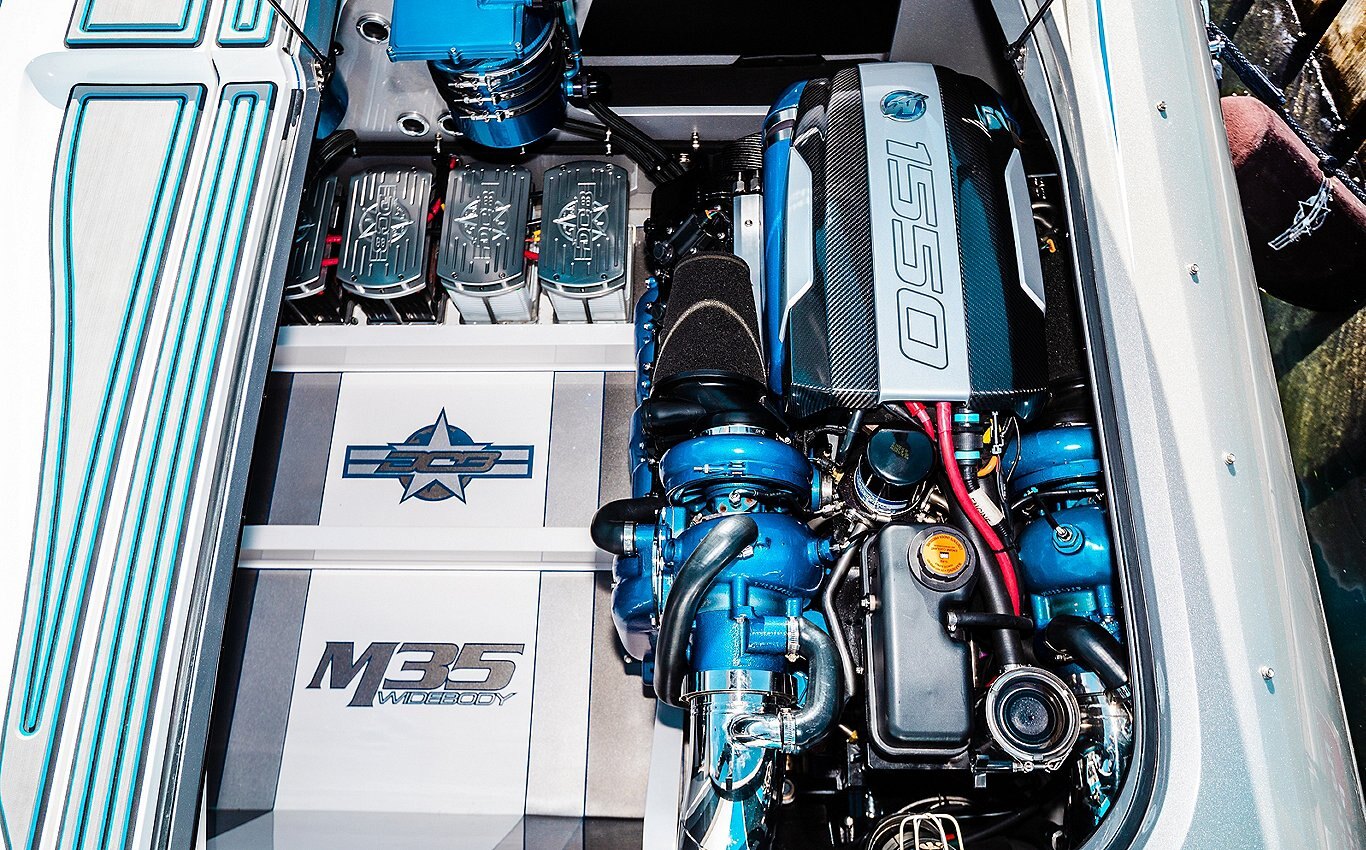

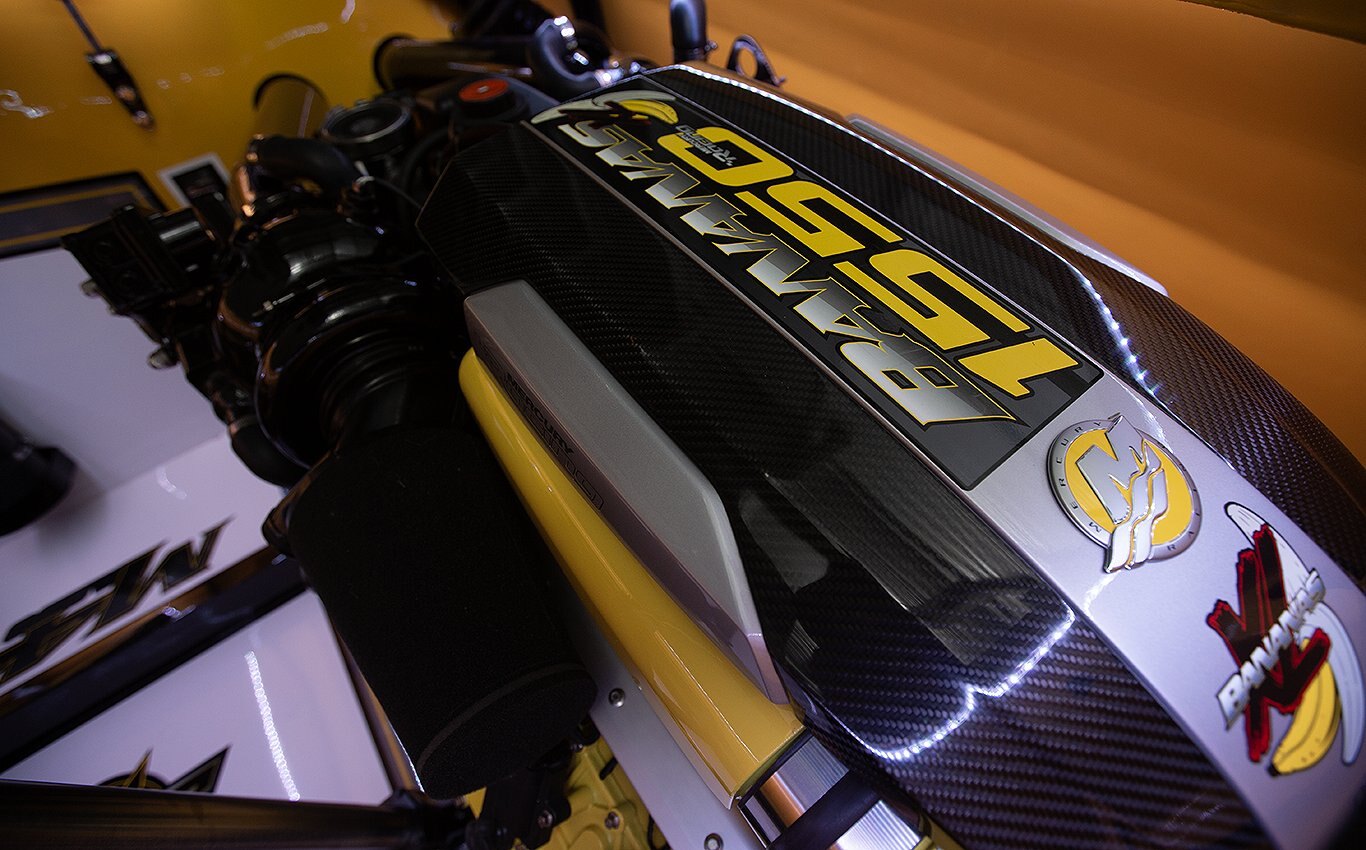

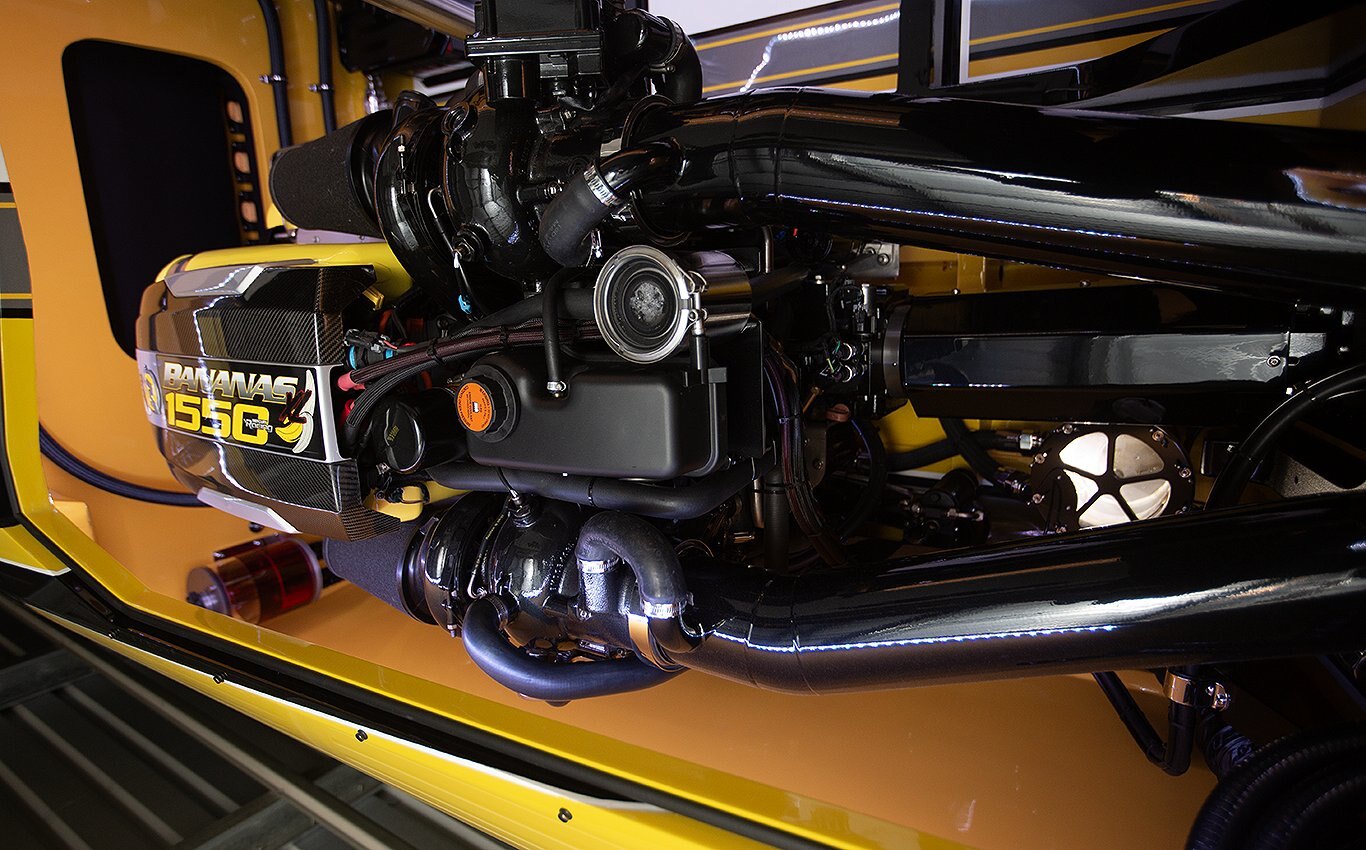

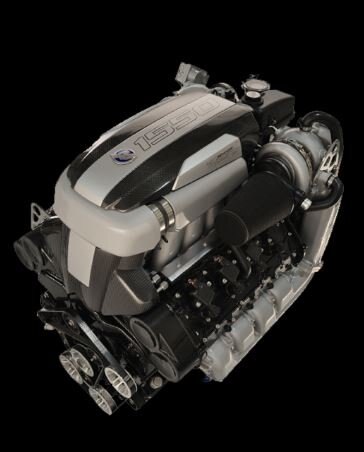

The Mercury Racing Dual Cal 1550/1350 sterndrive features an advanced control system which enables the operator to switch engine power level via an electronic key fob. The Race key fob turns the engine into a pure bred race machine – pumping out one thousand five hundred and fifty horsepower on 112 AKI race fuel. The Pleasure key fob is selected when a more leisure ride is in order, creating 1350 h.p. on 91 octane (98 RON) fuel. Both fuel calibrations provide maximum torque and efficiency and are designed to optimize the engine performance at each power level.
Specifications
Model
DUAL CAL 1550/1350
Category Name
Engines
Year
2024
Sale Type
New
Manufacturer
Mercury Racing
WIDTH
35 IN
HEIGHT
29 IN
WARRANTY
10 Hour Warranty At The 1550 Power Level (At 2000 RPM Or Above) Or 1 Year, Whichever Comes First.
ALTERNATOR
105 AMP
CONTROLLER
PCM09
DRIVE UNIT
M8
GEAR RATIO
Application Dependent
FUEL SYSTEM
Sequential Fuel Injection
DISPLACEMENT
9.0 L
TRANSMISSION
Mercury Racinq Dry-Sump Hydraulic
BORE & STROKE
9.0 L/552 CID
FUEL REQUIREMENT
112 AKI Required For 1550 Calibration / 91 Octane (98 RON) Minimum For 1350 HP
COMPRESSION RATIO
7.8:1
FULL THROTTLE RPM
6200-6800 (1550 HP) / 6000-6500 (1350 HP)
RATED HP AT TRANSOM
1550/1350
LENGTH - FROM BACK OF BLOCK
31 IN
CYLINDERS / ENGINE CONFIGURATION
V8
gearcase

Mercury Racing DUAL CAL 1550/1350

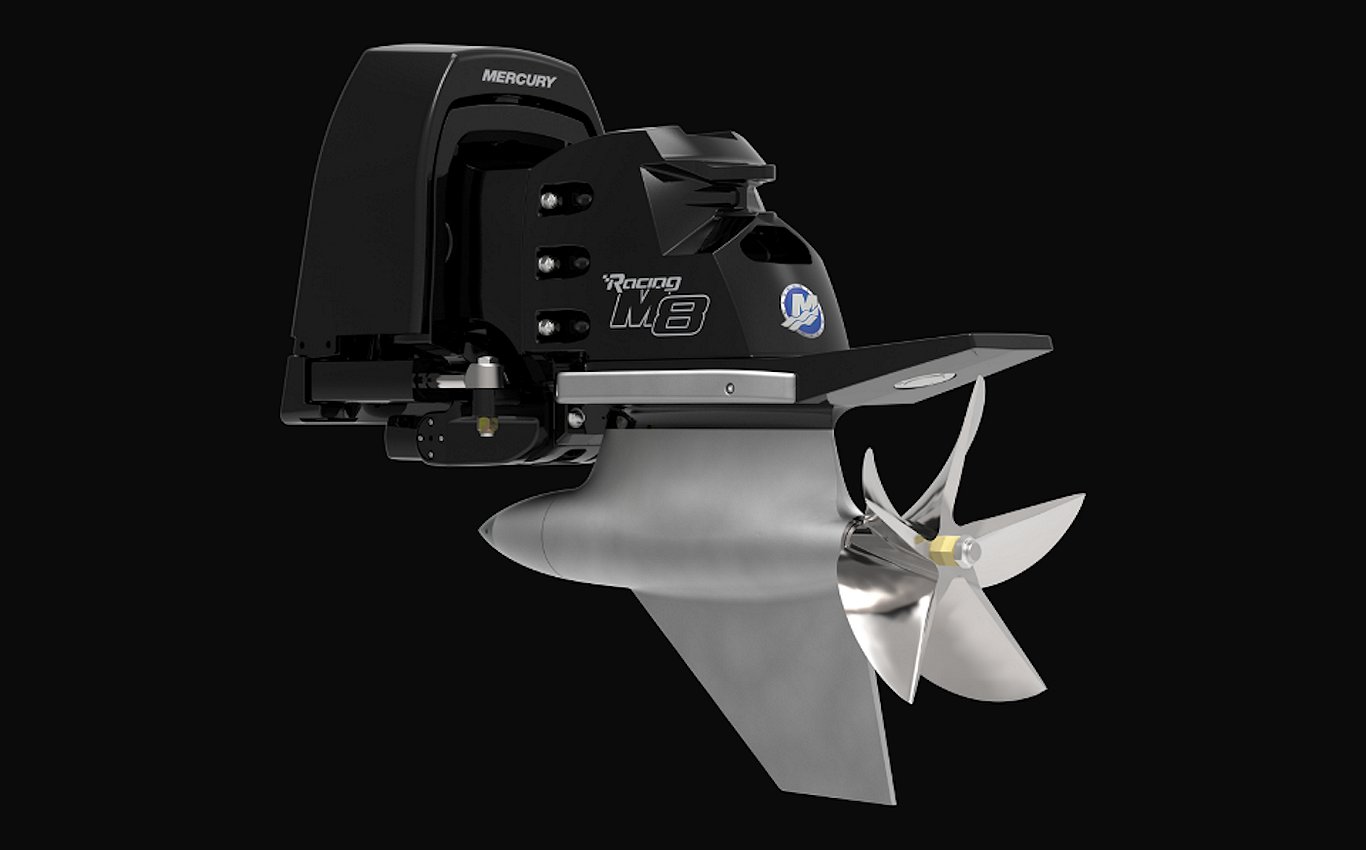

M8 DRIVE

A short, surface-piercing gearcase allows the engines to be mounted two inches deeper in the boat, which lowers the center of gravity, improving boat handling and overall performance. It also provides more flexibility in boat hatch styling. The M8 features twin-pinion drive and robust internal components rated to handle up to 1600 lb. ft of torque and 1600hp. Its dry sump design reduces parasitic power losses. A standard active anode provides enhanced corrosion resistance.
accessories

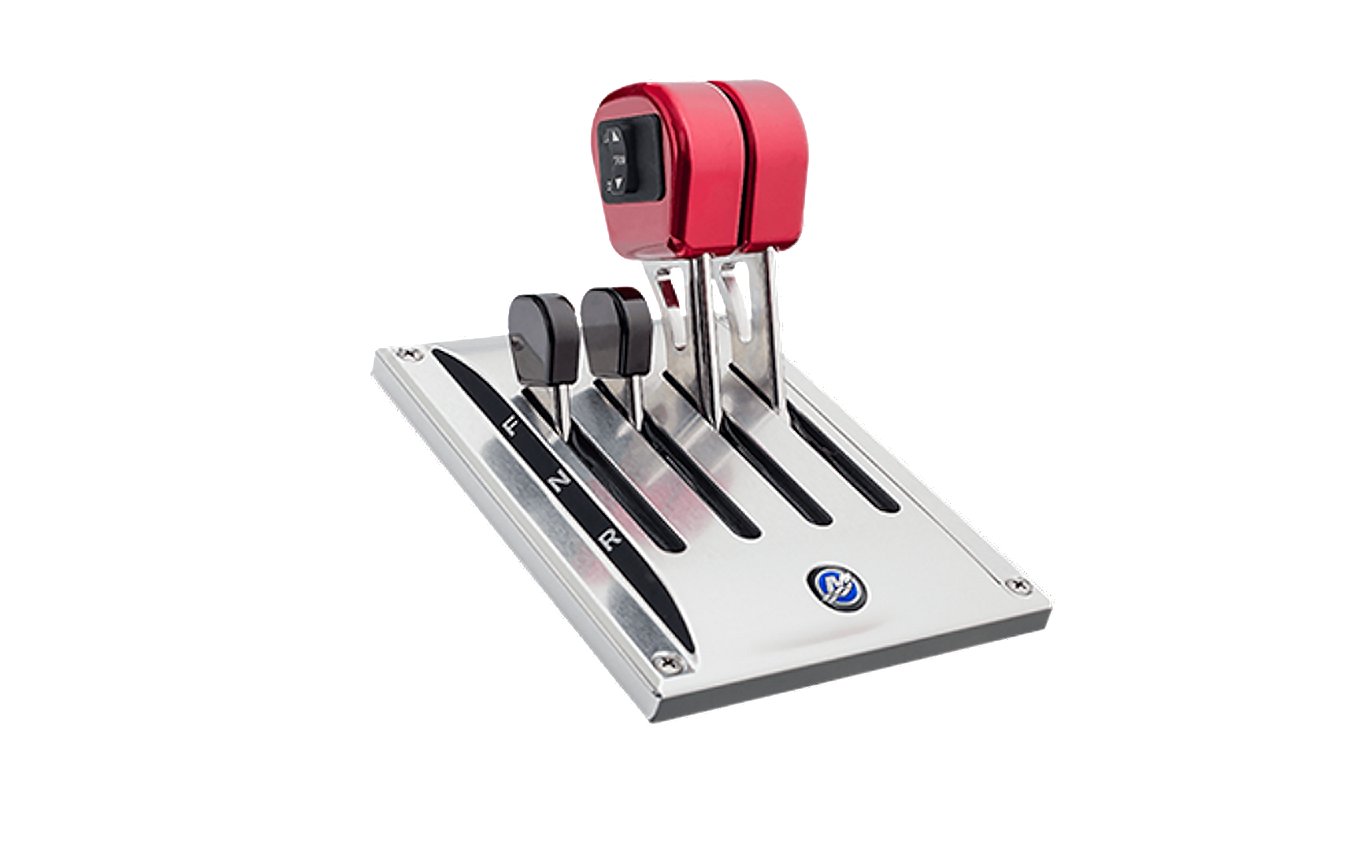

Mercury Racing DUAL CAL 1550/1350 DIGITAL ZERO EFFORT CONTROLS

Digital Zero Effort Controls replace the lag and hesitation of traditional throttle and shift cables with digital precision, resulting in smooth shifting and instant throttle response. Ergonomic design features short-throw levers for effortless shifting and ultra-fast throttle response, and the robust stainless-steel levers offer unmatched durability in the offshore environment. Digital Zero Effort Controls can provide automatic throttle synchronization and shadow mode for up to six engines (where two levers operate six engines).
Mercury Racing DUAL CAL 1550/1350

STERNDRIVE CNC PROPELLERS

Pitch, diameter, and rake are perfectly true on every Mercury Racing CNC propeller to ensure that lift, handling, and speed characteristics are absolutely consistent. Thousands of pitch, rake and diameter combinations are available to dial in the maximum performance of almost any high-performance boat. Each CNC Cleaver propeller is custom made to order.
literature
Name Link

MR-Sterndrive-Brochure.pdf

 Download
