Mercury Racing 250R Phantom Black

Overview

PERFORMANCE PERFECTED

The Mercury Racing 250R delivers unrivaled performance for lightweight, single-engine sport, bass and bay boats. The 250R outboard has the muscle to lift a heavy tournament boat out of the hole plus the deep-breathing power and high-performance components required to reach outrageous speeds, with confidence. Run with the Mercury Racing 250R on the transom and run out front.
Specifications
Model
250R
Category Name
Outboard Engines
Year
2024
Sale Type
New
Manufacturer
Mercury Racing
Color
Phantom Black
GEARCASE
Sport Master
RATED HP
250
STEERING
Electric Start With SmartStart Protection
WARRANTY
3-Year²
CYLINDERS
V8
MIDSECTION
Standard, Heavy Duty or Racing AMS
ENGINE TYPE
V-8 NA 4S
FUEL SYSTEM
Electronic Fuel Injection (EFI) Computer Controlled With Advanced Range Optimization
DISPLACEMENT
4.6 L
OIL CAPACITY
6.6L
BORE & STROKE
3.6 x 3.4 IN/92 x 86 MM
GEARCASE RATIO
1.75:1
IGNITION SYSTEM
SmartCraft PCM 112 Digital Inductive
OIL REQUIREMENT
NMMA Certified FCW SAE 10W-30
INDUCTION SYSTEM
Performance-Tuned Long Runner Intake Manifold
THROTTLE & SHIFT
DTS (AMS), DTS or Mechanical (CMS)
FUEL REQUIREMENTS
Performance-Tuned Long Runner Intake Manifold
FULL THROTTLE RPM
5600-6200
DRY WEIGHT (LB/KG)
520 LBS
SHAFT LENGTHS (INCH)
20
INTEGRATED REAR TIE BAR BRACKET
Available
powerhead

Mercury Racing 250R Phantom Black

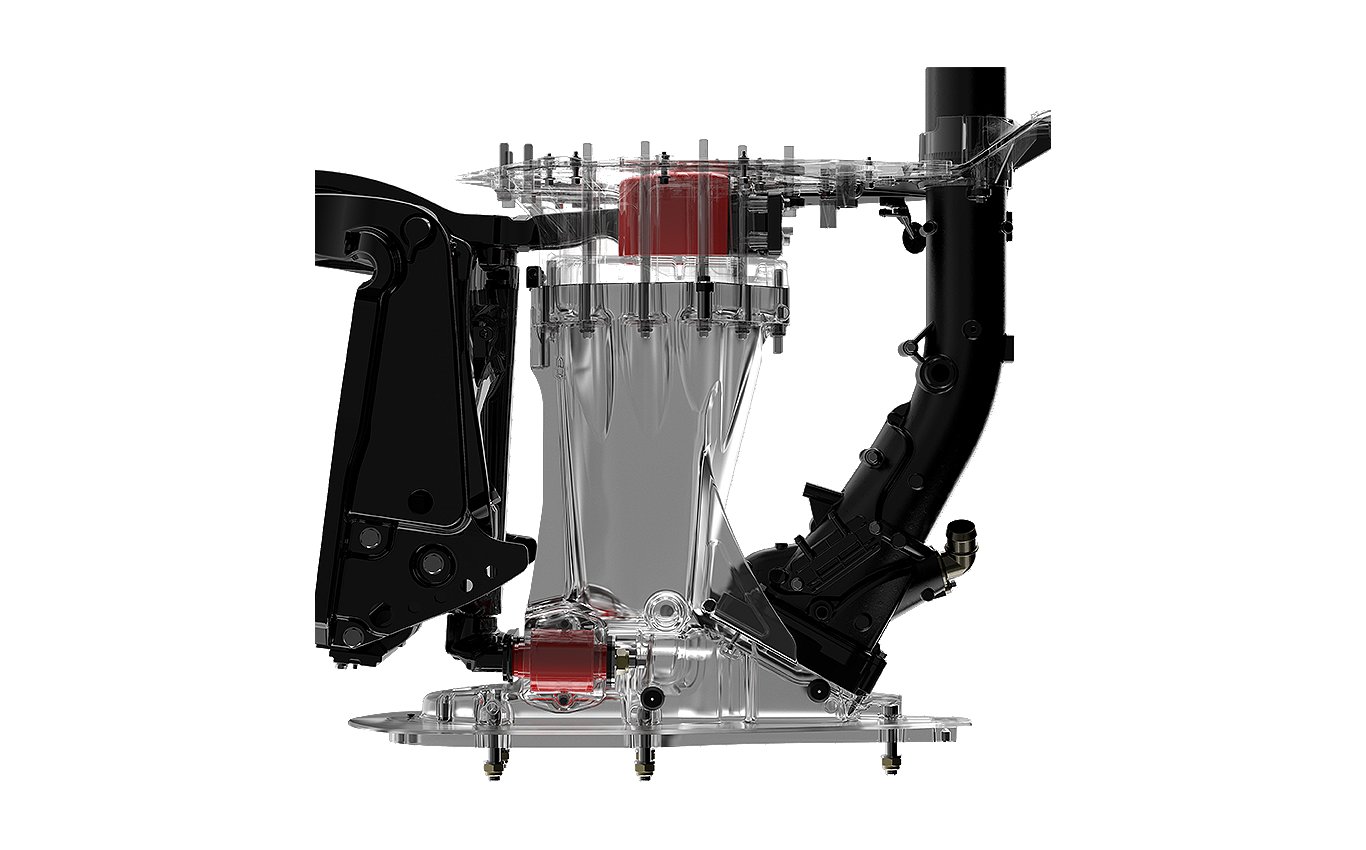

TRI-RAM MIDSECTION

Strong and rock-steady, the Mercury Racing tri-ram midsection features solid lower engine mounts and a high-durometer upper mount for enhanced stability and handling at high speeds, critical for confident control in the fastest, single-engine applications.

Mercury Racing 250R Phantom Black

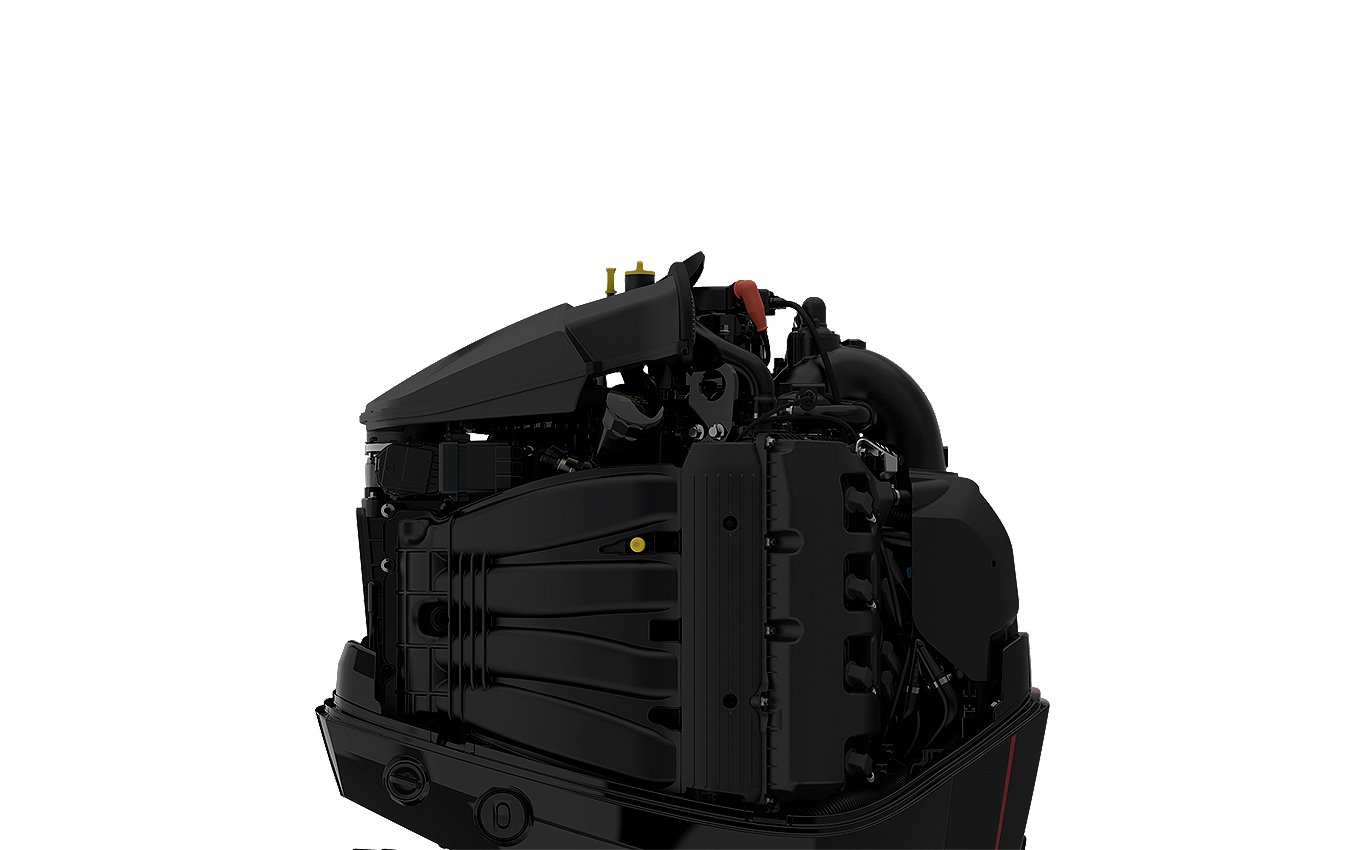

LONG-RUNNER INTAKE

Mercury Racing has tuned the 250R outboard model to produce the perfect combination of low-end grunt and high-winding horsepower. A performance-tuned intake runner helps pack more air through the deep-breathing 32-valve dual overhead cam valve train to squeeze more power from the V8 4.6-liter engine. Mercury Transient Spark Technology optimizes torque output for stronger hole-shot performance.
gearcase

Mercury Racing 250R Phantom Black

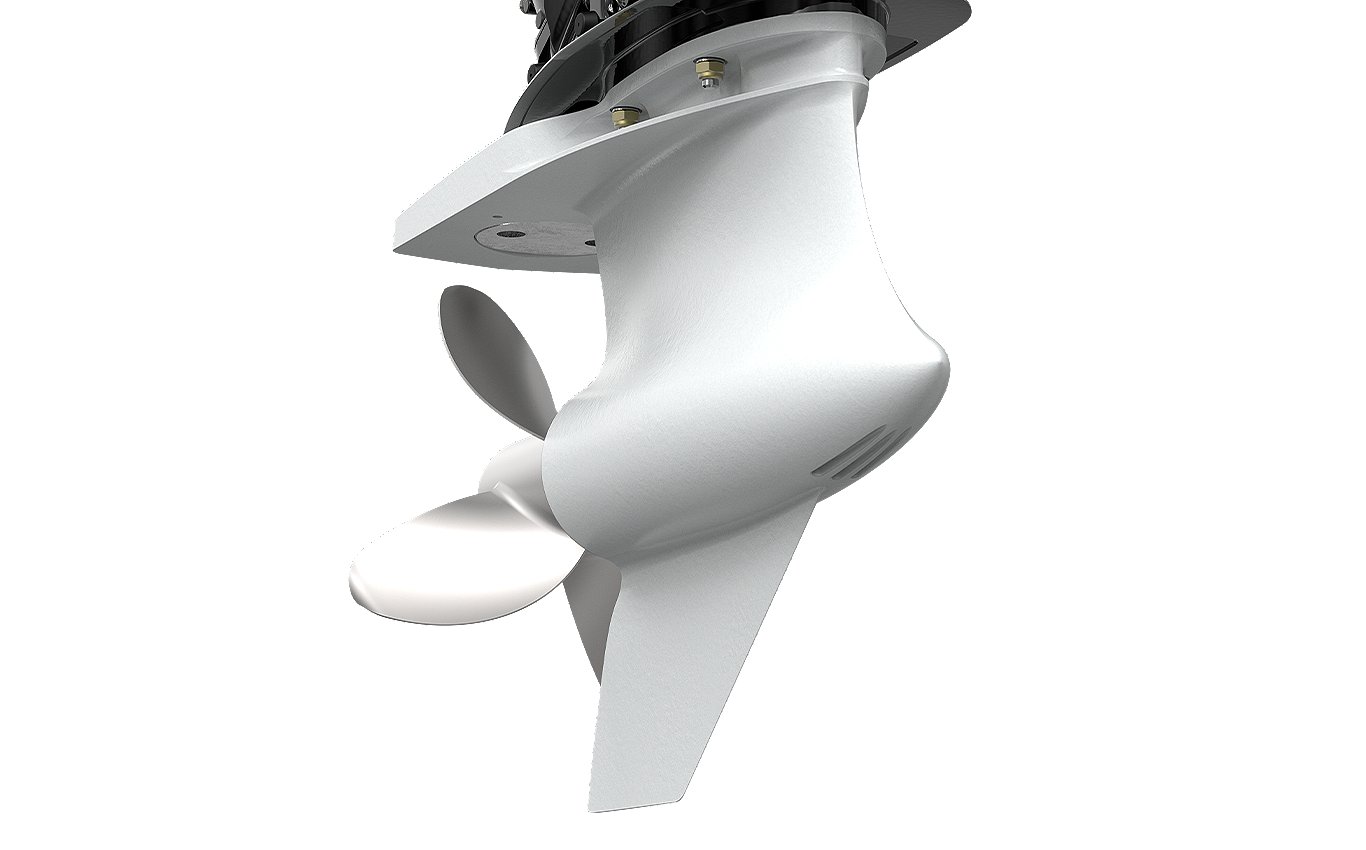

SPORT MASTER GEARCASE

The race-proven Sport Master surface-piercing gearcase is designed specifically for speeds greater than 85 mph and features low water pick ups and a crescent leading edge to maximize efficiency and velocity. Use a selection of Mercury Racing propellers to dial-in performance.
tech

Mercury Racing 250R Phantom Black

POWER STEERING OPTION

Enhance high-speed control and all-around comfort with optional Mercury electro-hydraulic power steering. Smooth and precise electronically actuated throttle and shifting matched to manual controls eases re-power installations and enables easier installation of a foot throttle.

Mercury Racing 250R Phantom Black

87 OCTANE

The Mercury Racing 250R delivers a reliable, powerful performance punch on readily available 87-octane fuel.

Mercury Racing 250R Phantom Black IDLE CHARGE

Exclusive Idle Charge battery management helps prevent battery drain on boats loaded with power-hungry fishing electronics and audio systems. When Idle Charge detects low battery voltage it automatically increases idle rpm to boost alternator output until batteries are recharged. An 85 amp belt-driven alternator is designed to run cooler and maintain peak charging performance in the most-demanding conditions.

Mercury Racing 250R Phantom Black

SMARTCRAFT TECHNOLOGY

SmartCraft® Integrated Marine Technology with Engine Guardian® monitors vital engine sensors for early indications of problems and takes corrective action to reduce the risk of engine damage. Critical engine data can also be displayed on a SmartCraft System instrument or a compatible display screen.
